Texa Navigator TXT Multihub | D155A0

SKU: DTQHDW-00A551D
$2,600.00 In Stock Backordered

Lead Time:

Add to wishlist Added to wishlist
Add to compare Added to compare

Fast Shipping

Quality Parts

Best Pricing

  • Description
  • Shipping and Refund


Navigator TXT Multihub - D155A0

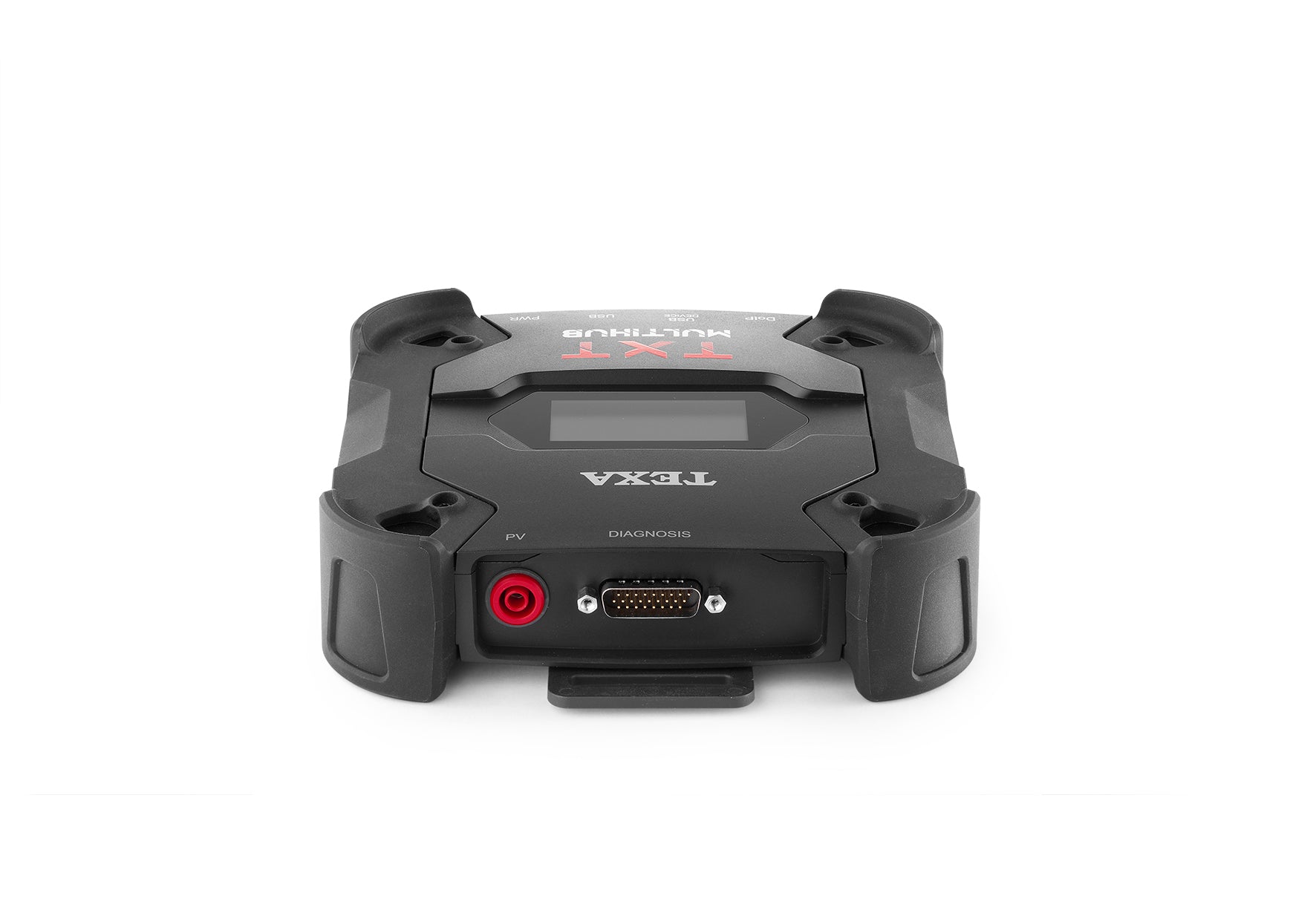

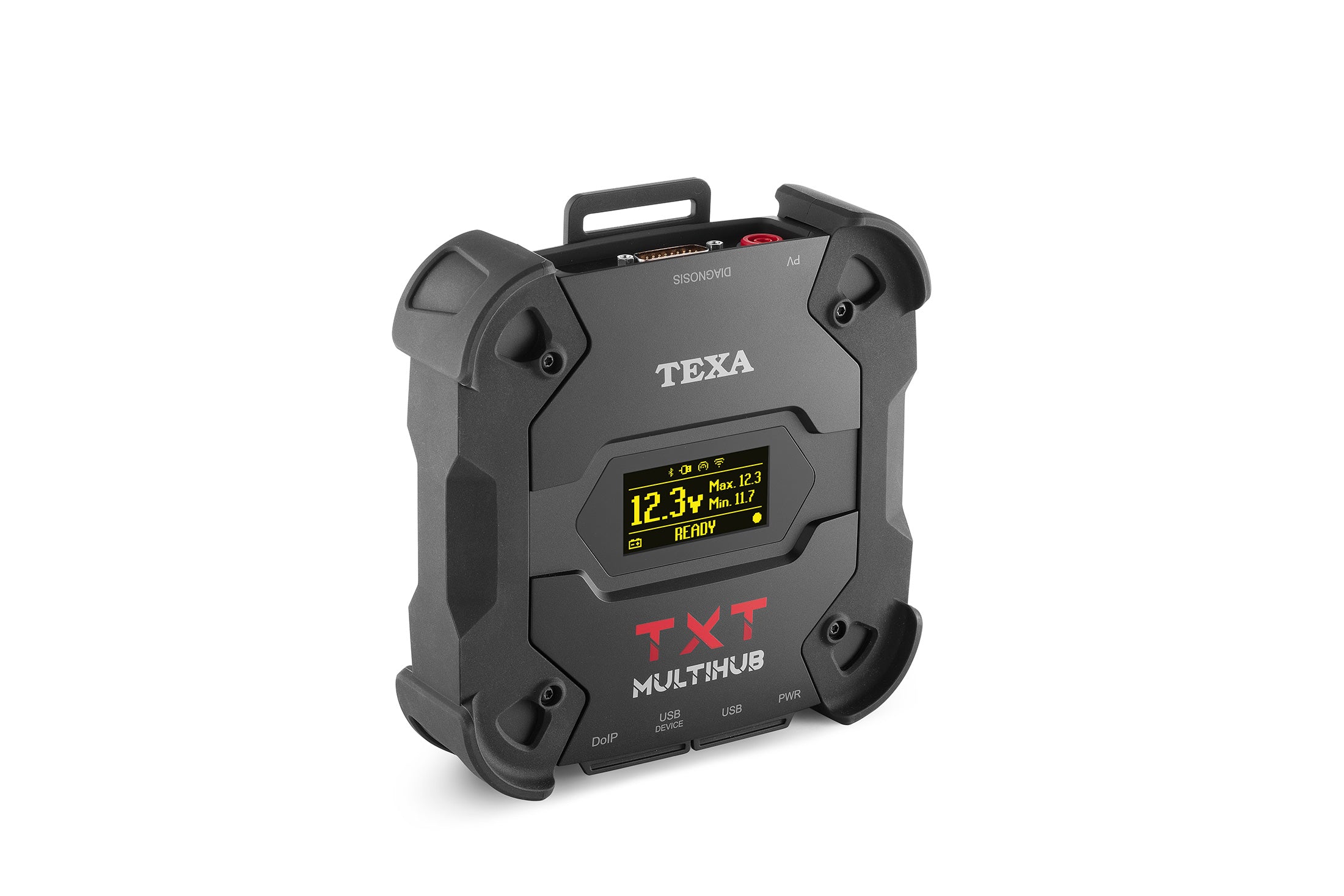

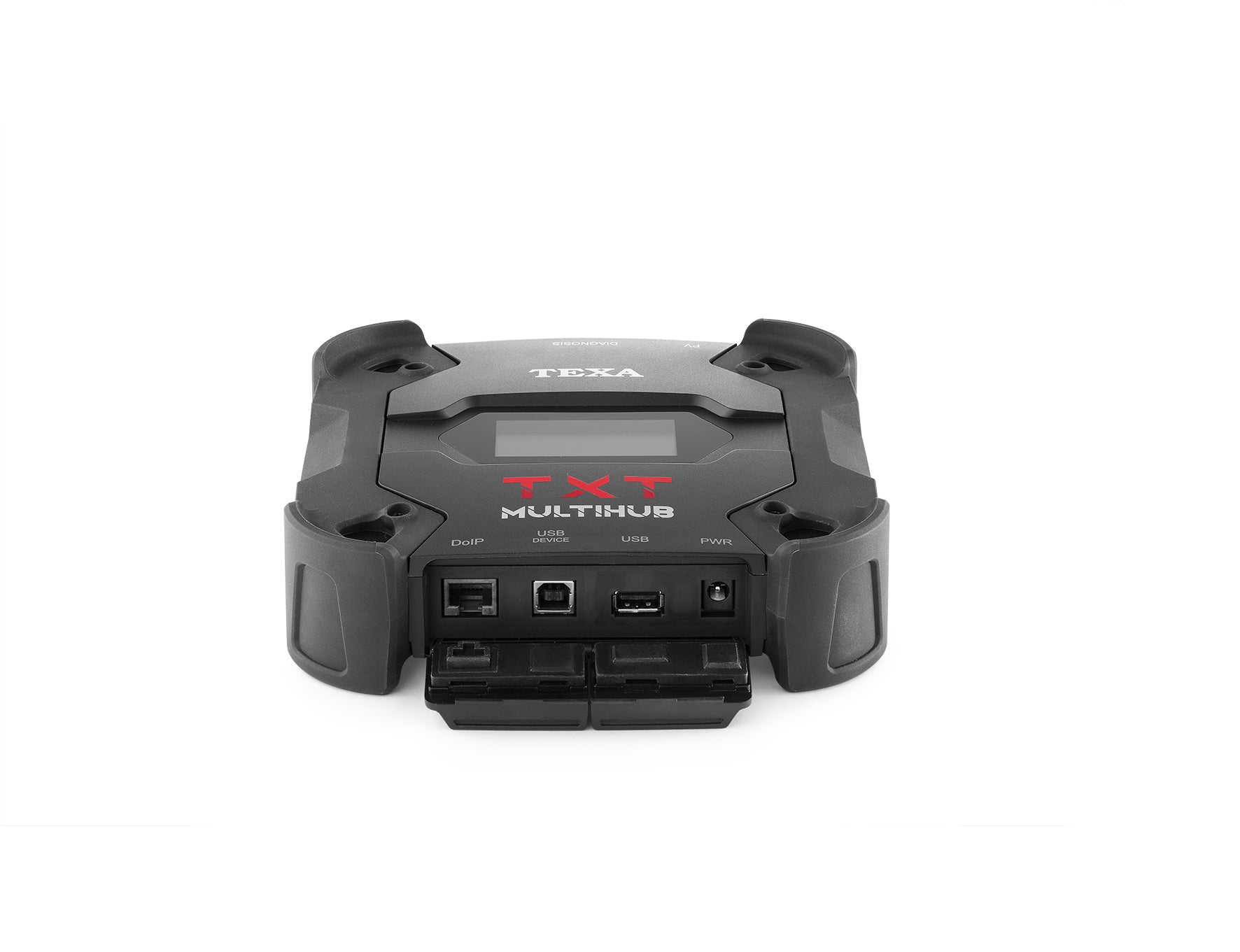

The Texa Navigator TXT Multihub D155A0 is a compact, yet powerful diagnostic device for technicians and mechanics. This handheld unit combines the functions of multiple diagnostic tools into one, saving time and increasing efficiency. With advanced diagnostic software and a built-in Bluetooth module, the Multihub D155A0 provides quick access to a wide range of vehicle systems and protocols. The intuitive user interface and easy-to-read screen make it simple to navigate and use. Whether you're working on passenger vehicles, commercial vehicles, or heavy-duty trucks, the Texa Navigator TXT Multihub D155A0 is the perfect tool for the job.

Features:

  • Multi-Vehicle Support: The Navigator TXT Multihub supports a wide range of vehicles, including cars, trucks, motorcycles, and agricultural machinery, making it a versatile tool for any garage or workshop.
  • Advanced Diagnostic Functions: The Navigator TXT Multihub provides a comprehensive suite of diagnostic functions, including reading and clearing fault codes, live data streaming, and active tests, allowing mechanics to quickly diagnose and repair faults.
  • User-Friendly Interface: The Navigator TXT Multihub features a user-friendly interface that is easy to navigate, with a clear and intuitive display of information.
  • Robust Hardware: The Navigator TXT Multihub features rugged hardware that is built to withstand the demands of daily use in a workshop environment. It is water-resistant, shock-resistant, and features a long-lasting battery, making it a reliable tool for even the toughest jobs.
  • Software Upgradability: The Navigator TXT Multihub's software is regularly updated to include new vehicles and new functions, ensuring that the tool stays up-to-date and relevant for years to come. (Note: Requires an active subscription.)
  • Wide Range of Connectors: The Navigator TXT Multihub comes with a wide range of connectors, allowing it to interface with a variety of vehicles and systems, ensuring that it can diagnose and repair a wide range of faults.



Component Specification
Main Processor Type: iMX6 1 GHz, RAM: 512 MByte, Mass Storage: eMMC 8 GByte
Coprocessor Type: STM32F439 168 MHz, RAM: 2 MByte SRAM, 8 MByte SDRAM, Flash: 2 MByte
Power Supply Connector PWR: 2.1 DC jack
Power Supply 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings), Consumption: 1 A @12 V max
USB Connectors USB: USB 2.0 host type A max 1 A out, USB DEVICE: USB 2.0 device type B (priority connector)
Bluetooth Communication Bluetooth 5.0 (BDR/EDR/LE)
WiFi Communication WiFi IEEE 802.11 b/g/n 2.4GHz, Operational band: 2400 ÷ 2483.5 MHz, Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)
Diagnostic Connectors DIAGNOSIS: DSUB-26HD (ISO 22900-1), DoIP: RJ45 (UDP/TCP 13400)
Electronic Switch 2-way, 13 independent positions
Control Units Reprogramming Connector PV (SAE J2534-1)
User Interface Display OLED 64×128 dot
Operating Temperature 0 ÷ 50 °C
Storage Temperature – 20 ÷ 60 °C
Supported Protocols Blink codes, K, L (with current protection 100 mA), ISO9141-2, ISO14230, CAN ISO11898-2 High Speed, Second ISO11898-2 CAN channel, CAN ISO 11898-3 LOW Speed, CAN SAE J2411 Single Wire, SAE J1850 PWM, SAE J1850 VPW, SAE J2534-1, SAE J1708, UDP/TCP ISO 13400 (DoIP)
Operating Moisture 10 ÷ 80 % without condensation
Dimensions [mm] 176,1 x 175,4 x 46,8
Weight 600 g
IP Protection Level IP53 * (*) With properly closed protective caps.
Directives RoHS 2011/65/UE, RED 2014/53/UE, 2015/863/UE
Electromagnetic Compatibility ETSI EN 301 489-1, ETSI EN 301 489-17
Radio Systems ETSI EN 300 328
Electrical Safety EN 62638-1/AC:2015, EN 62311:2008
